Milwaukee 3693-22CXvCR M18 Compact Brushless 2-Tool Combo Kit w/ Router
Milwaukee 3693-22CXvCR M18 Compact Brushless 2-Tool Combo Kit w/ Router
Quantity
-
Detail
Features

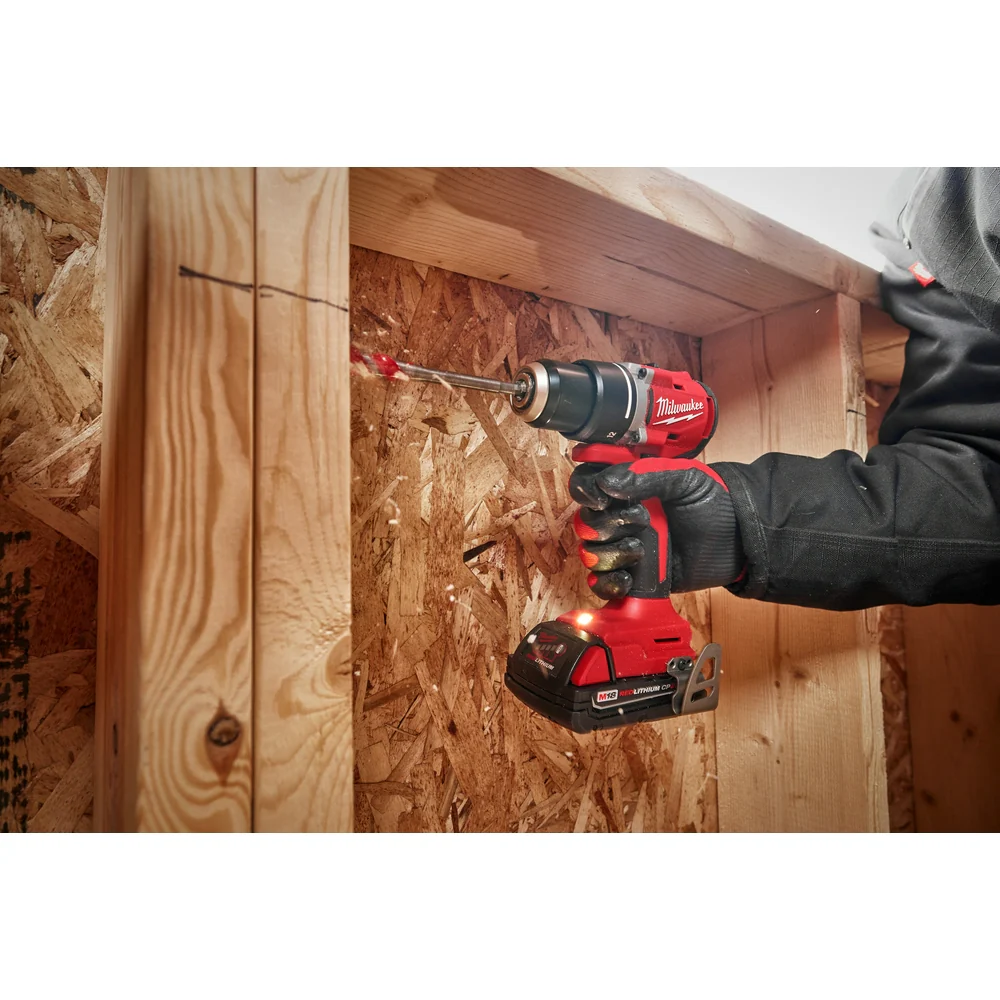

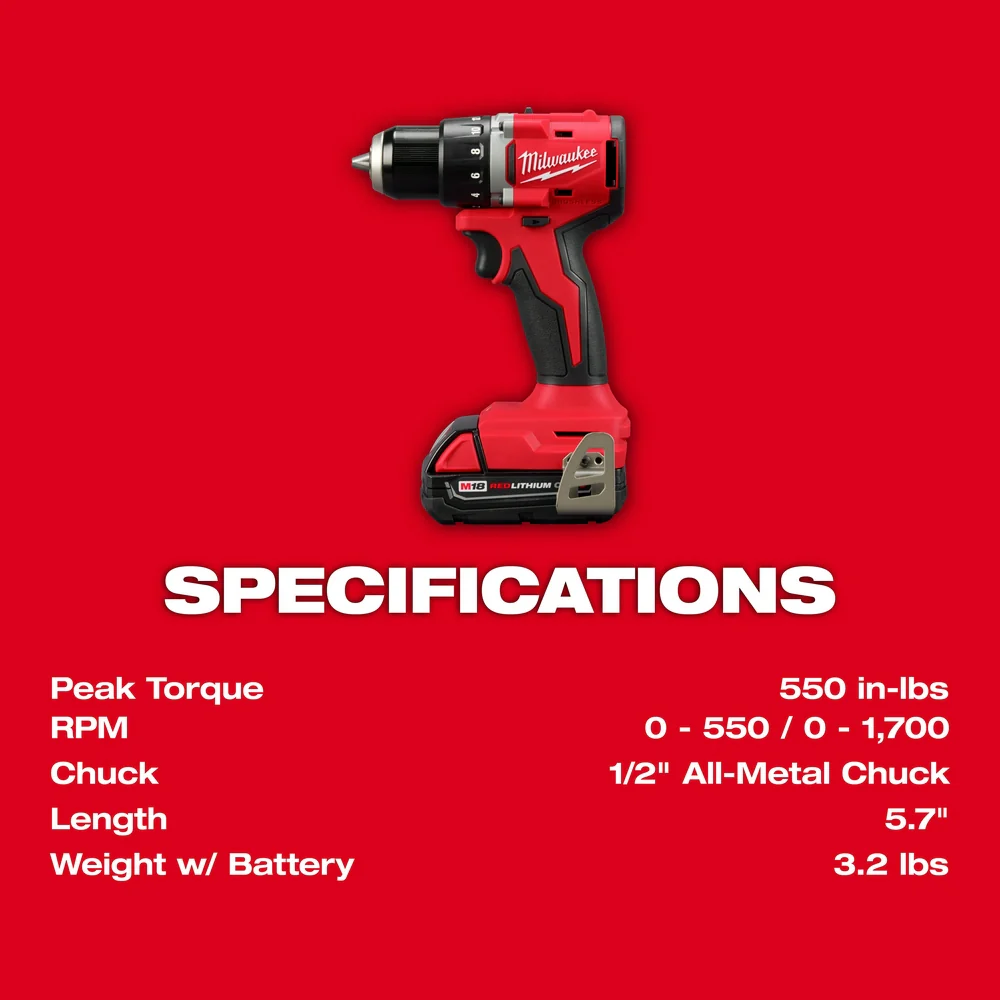

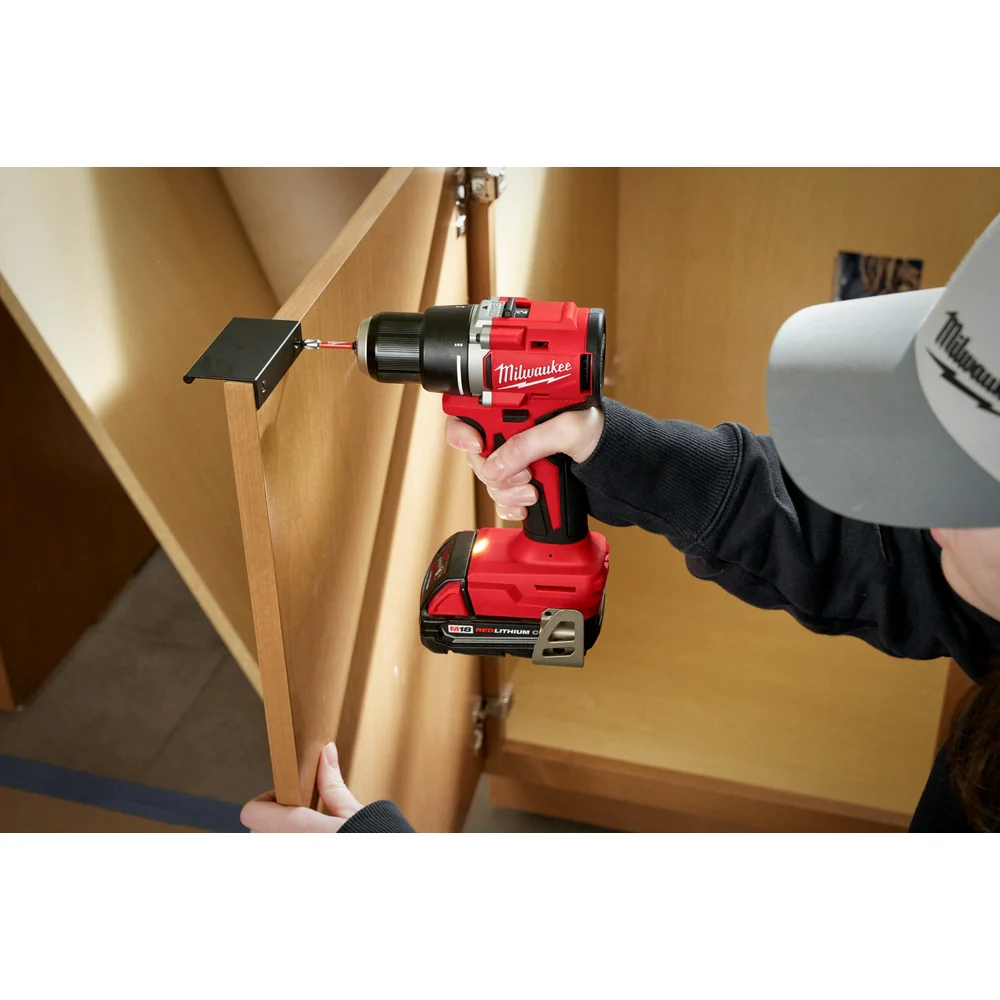

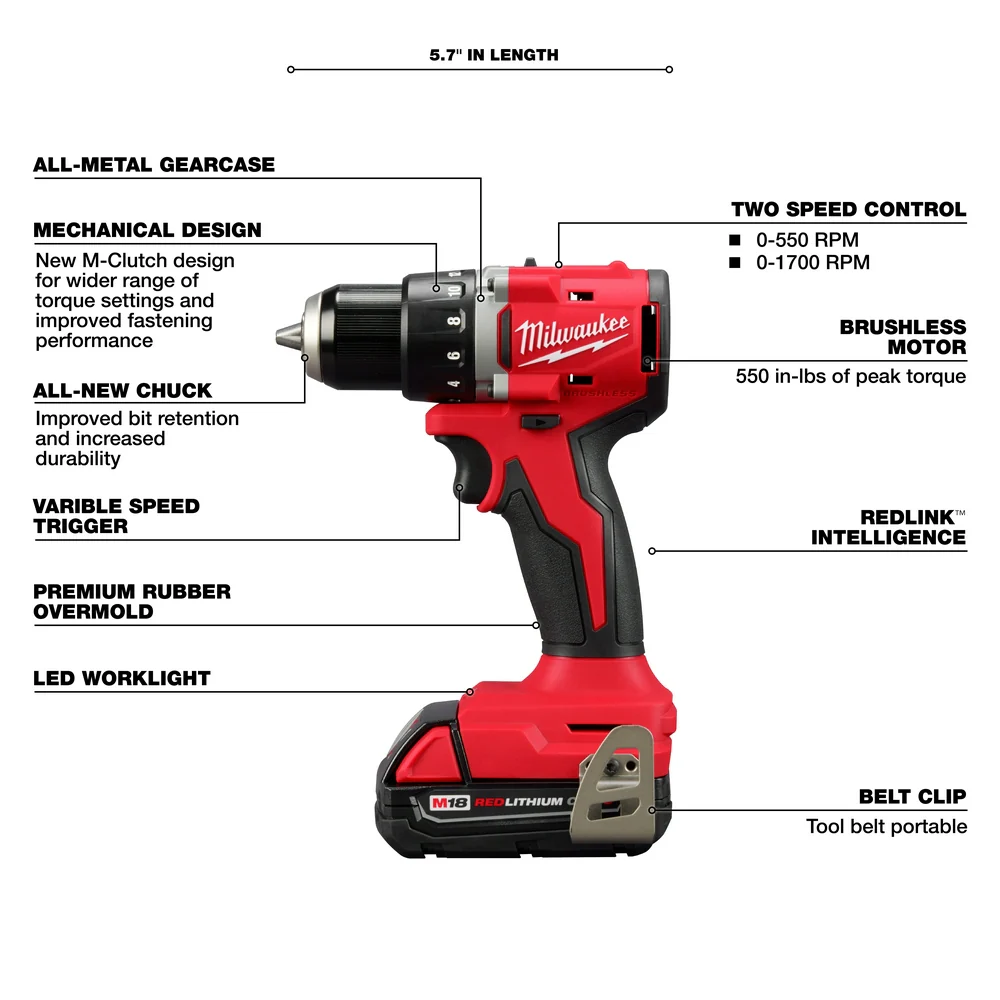

- Hammer Drill/Driver
- Hammer Drill
- Compact design: provides excellent balance and control. ideal for overhead applications or work in tight spaces Brushless Motor delivers the power to quickly complete most common applications
- Only 5.8 in length
- 550 in./lbs. of torque
- 0-550 RPM / 0-1700 RPM
- 2.3 lbs tool only
- All-metal gear case and 1/2 in. metal chuck: provide maximum impact and shock durability

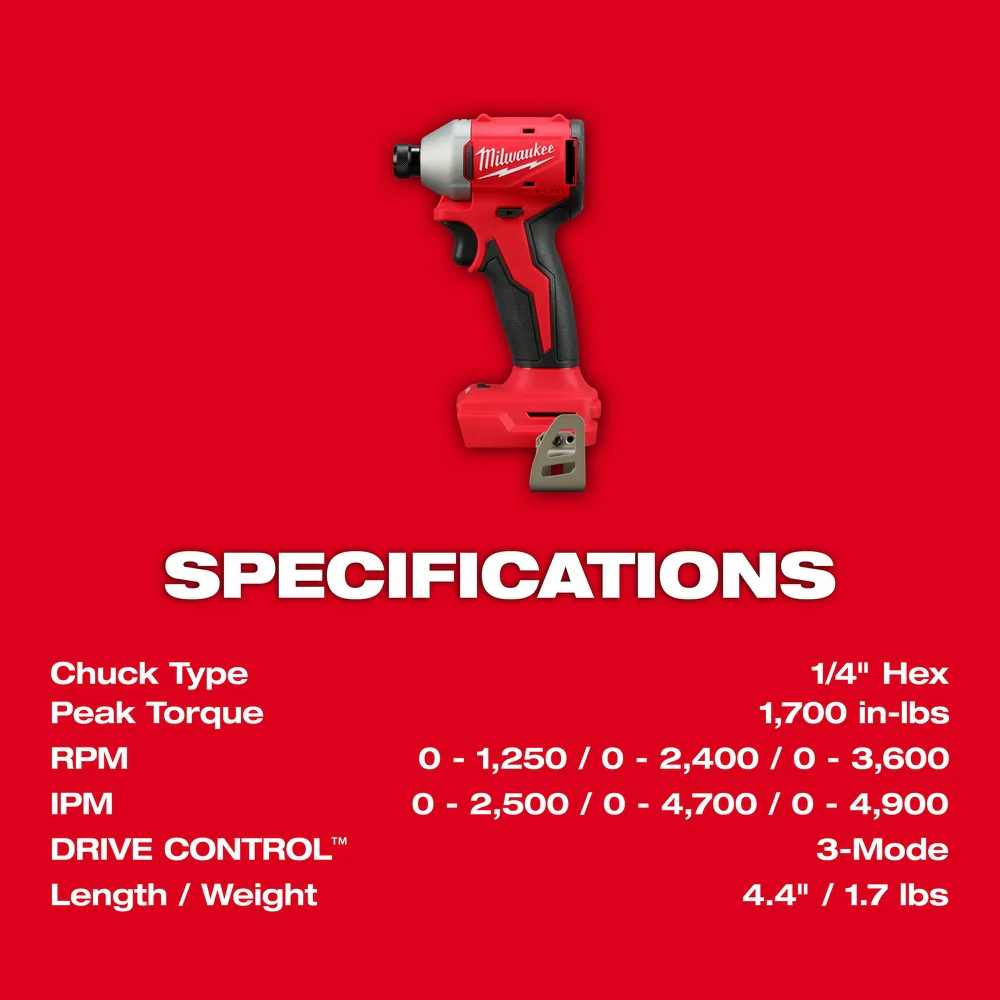

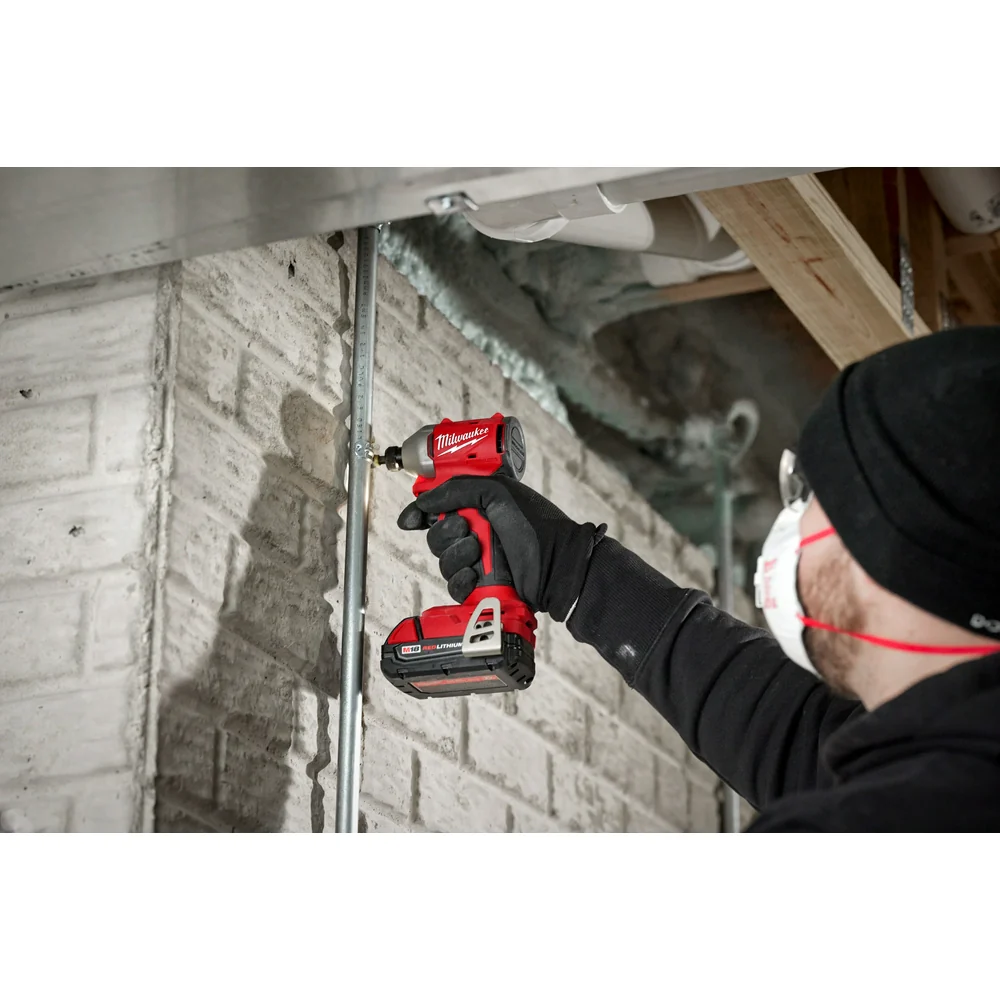

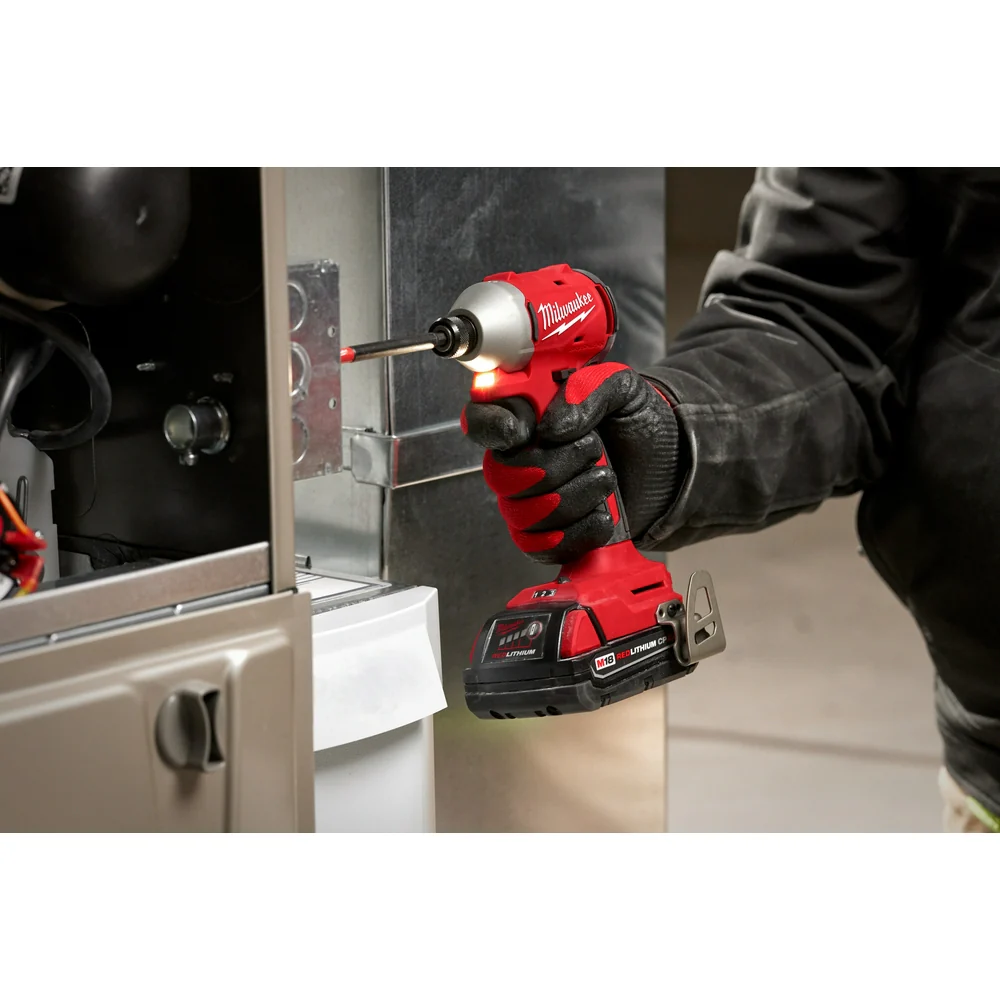

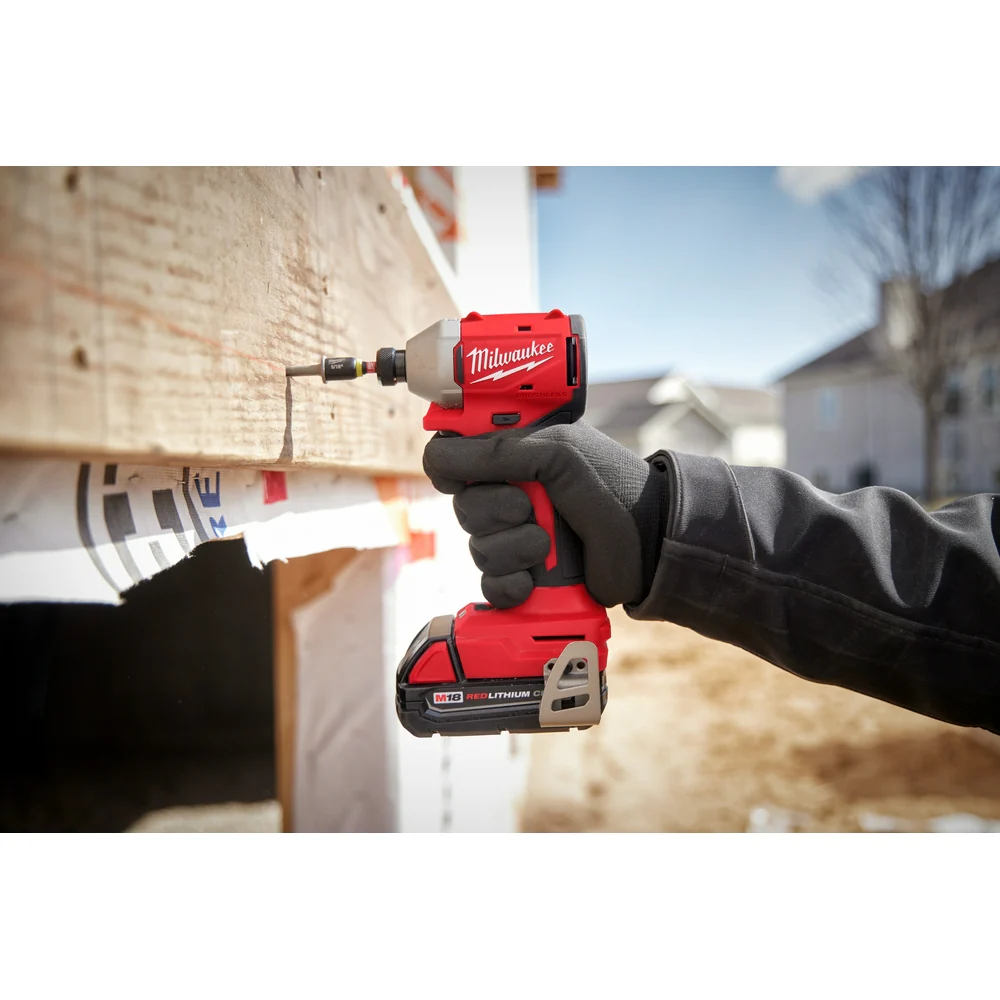

- Impact Driver
- Compact size allows for unrivaled access in tight spaces
- Brushless Motor delivers the power to quickly complete most common applications
- Includes 3-Mode Drive Control for easier control
- Professional Durability with all metal gearcase and gears
- 0-3600 RPMs
- 1.700 in-lbs. of Peak Torque

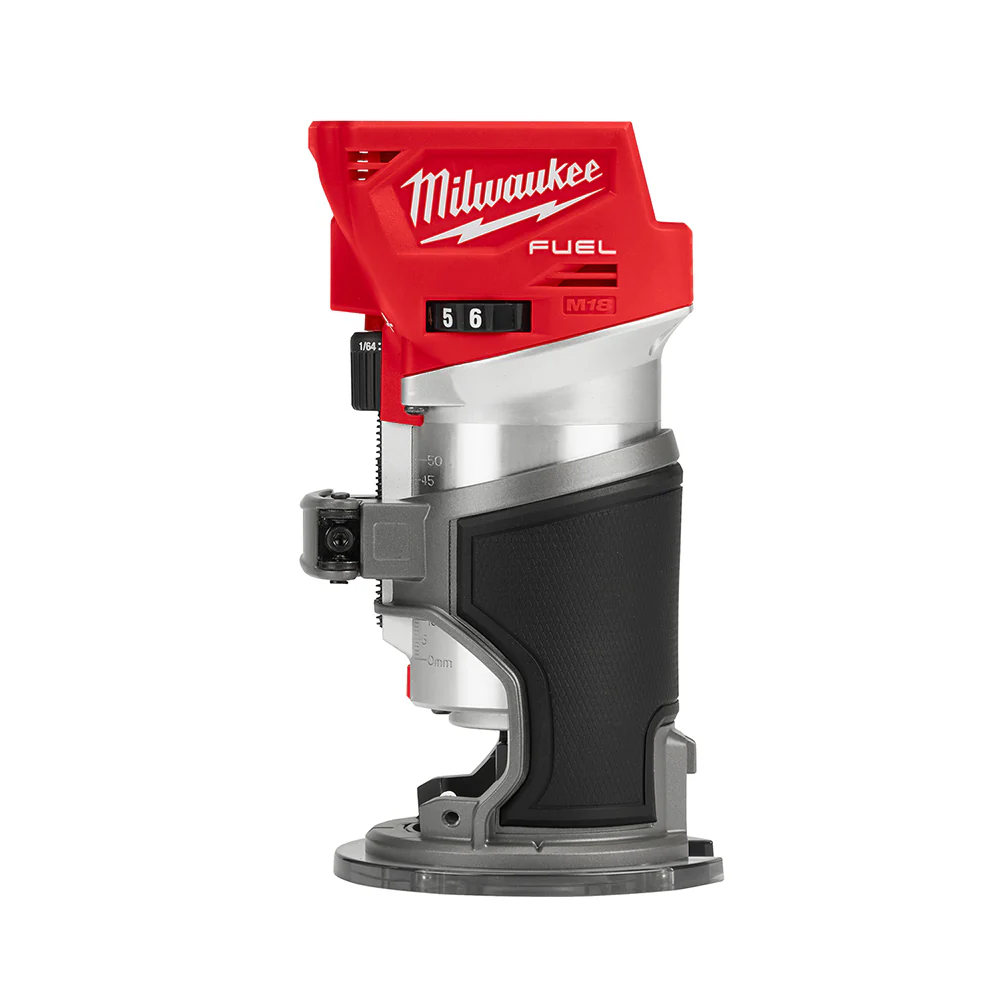

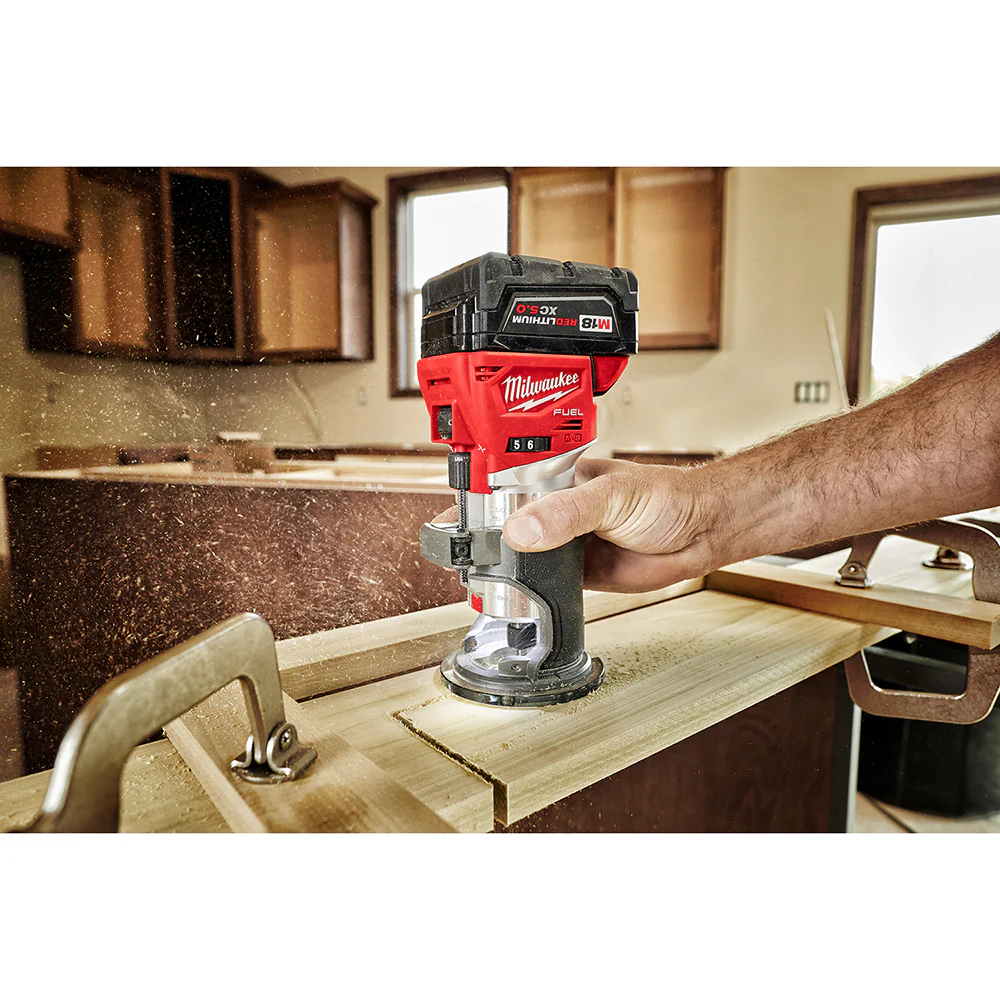

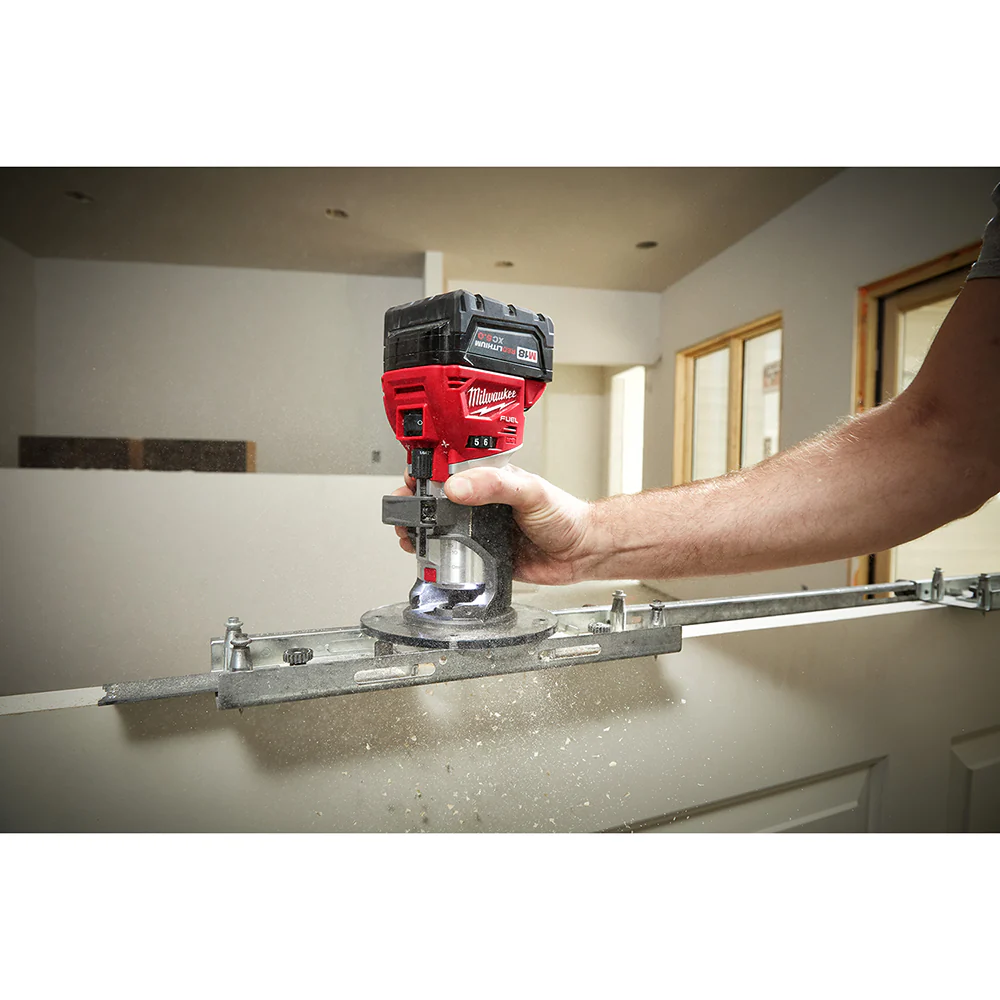

- 4.4 in Length and 2.1 in Width Compact Router

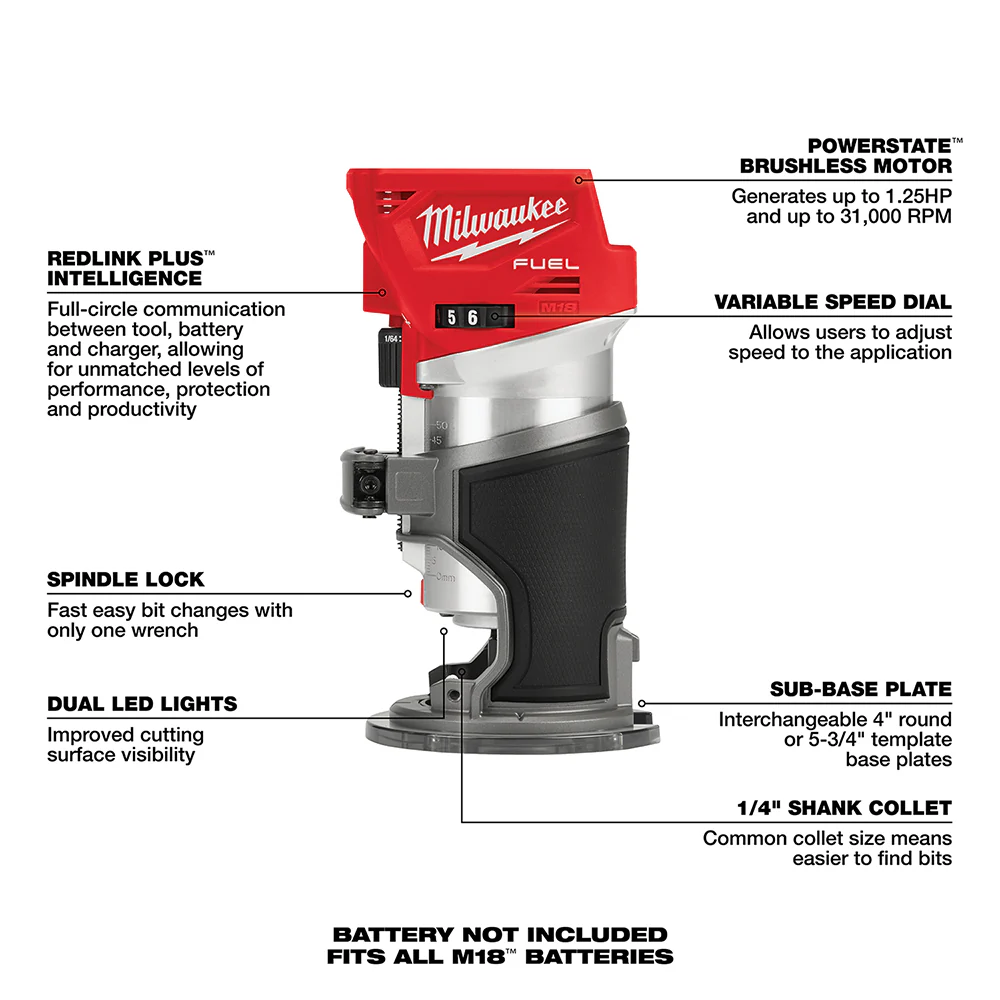

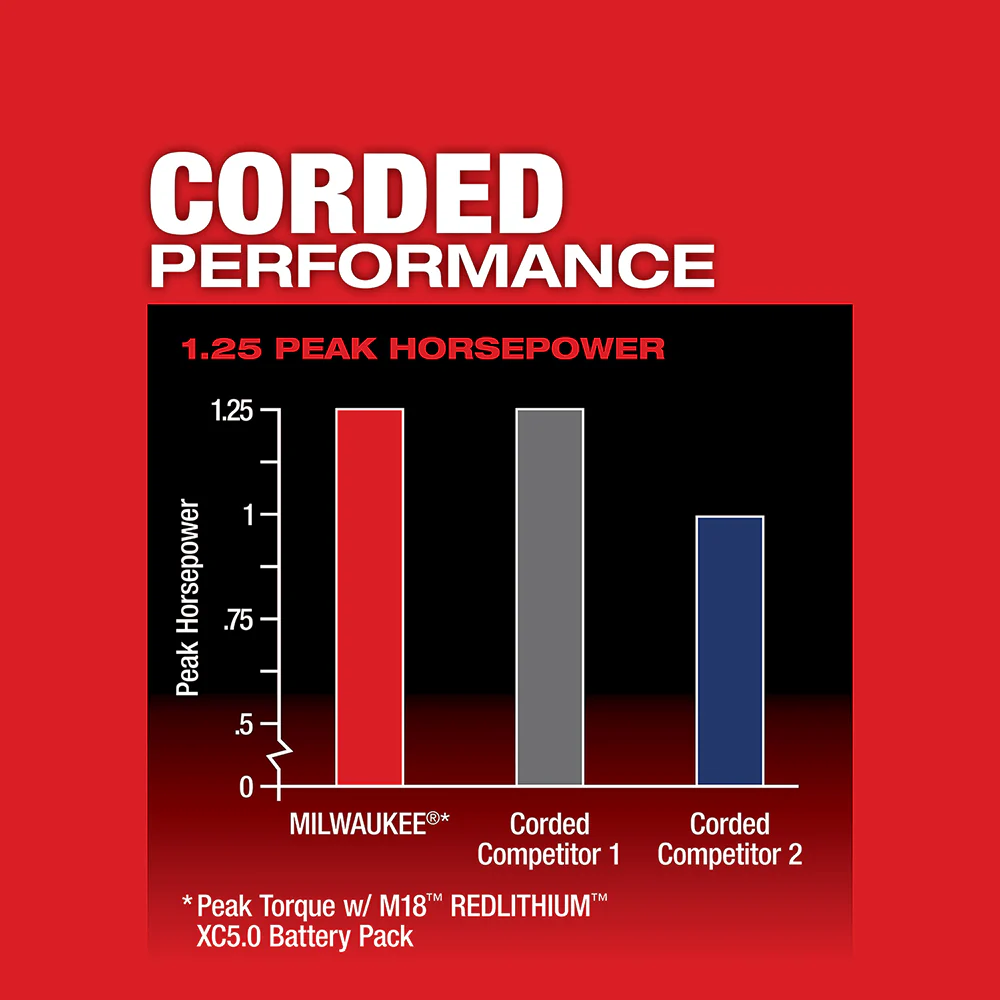

- POWERSTATE Brushless Motor: Power of corded compact routers and higher SPM to complete cuts in hard woods
- REDLINK PLUS Intelligence ensures maximum performance and protects from overloads. heating and over-discharge
- REDLITHIUM Battery Pack: Delivers more work per charge and more work over the life of the pack than competitor
- Variable speed dial ranges between 10.000 and 31.000 rpm. providing precise control for clean edges and details
- Macro Adjust button allows for fast macro-adjustments and 1-1/2 of adjustable range
- Fine adjustment screw allows for precise adjustments beyond 1/64 increments
- Tool-free spindle lock provides easy bit changes with one 11/16 collet wrench
- Accepts 1/4 shank router bits
- LED light illuminates the cut surface
- Compatible with Milwaukee Plunge base and Offset base attachments (sold separately)
- Includes straight edge guide; dust extraction attachment and 5-3/4 sub-baseplate which accepts 1-1/4 template bushings
RED LITHIUM™ BATTERY PACK-Industry leader in lithium-ion battery technology
-Patented designs protect against drops. water and harsh environments
-Robust electronics optimize performance for every tool and battery combinationCOMPATIBILITY THAT IS SYSTEM WIDEMilwaukee is committed to protecting their customers' investments. All of their M18™ tools are built to provide the best performance and trade-focused solutions. All M18™ tools are compatible with the M18™ REDLITHIUM™ batteries. creating endless possibilities.Specifications
SKU 3693-22CXvCR Brand Milwaukee 3693-22CX IPM 0-4900 ipm Maximum Torque 1700 ft-lbs Power Cordless Handle Type Pistol Grip Brushless Yes Battery System M18 Chuck Type Hex Chuck Size 1/4 in Hex DRIVE CONTROL 3-Mode BPM 0-4900 bpm Maximum RPM 3600 rpm RPM Range 0-3600 rpm Length 4.4 in Weight 1.7 lb Height 7.7 in Width 2.1 in 2723-20 Volts 18 HP 1-1/4 RPM 10000 - 31000 Max Bit Depth 1-1/2 in Dual LED Yes Bit Brake Yes Power Cordless Weight 2.95 lbs

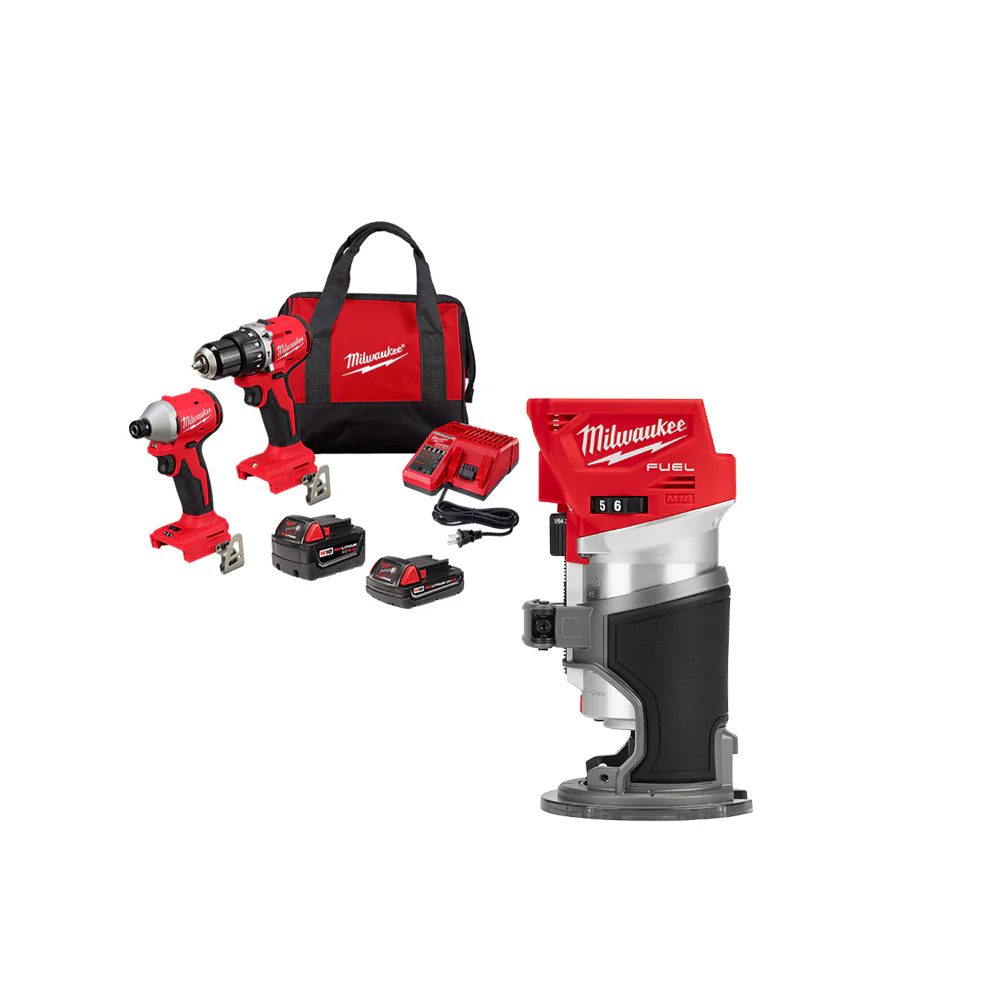

What's in The Box

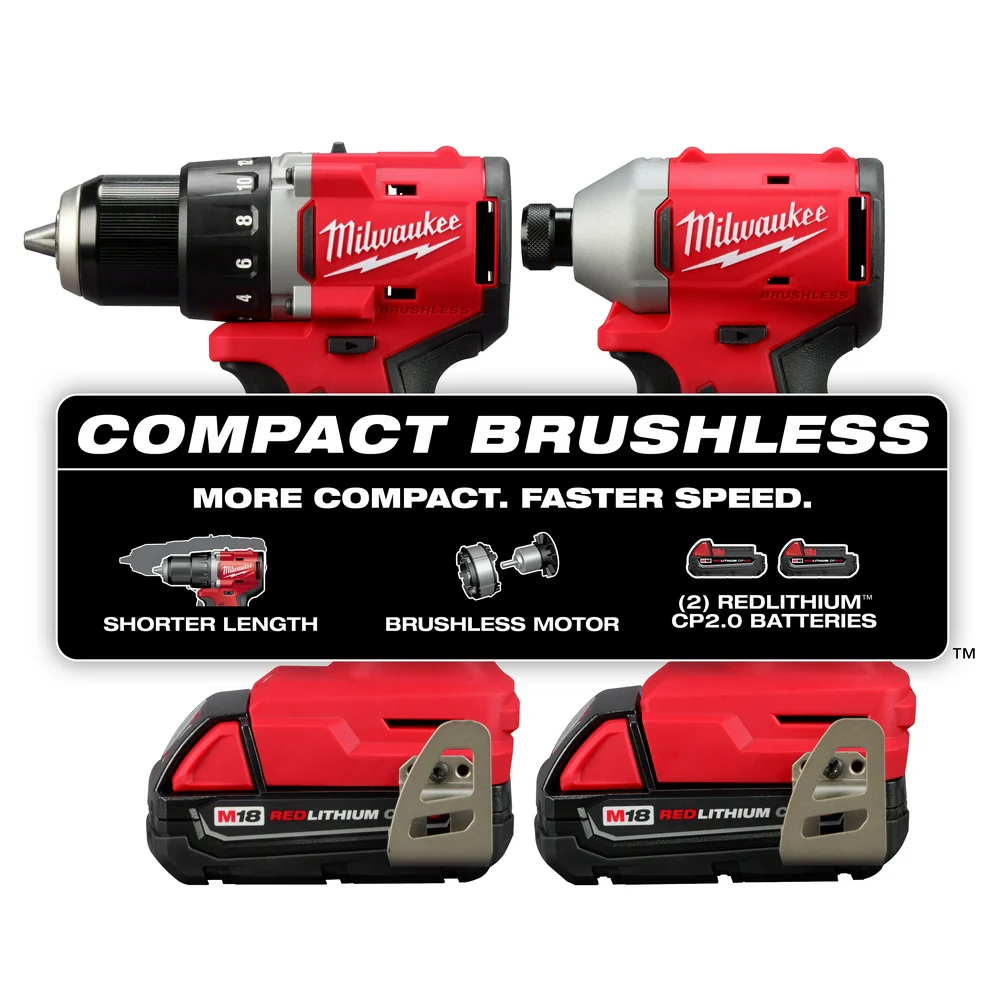

- (1) M18 Compact Brushless 1/2 Hammer Drill/Driver(3602-20)
- (1) M18 Compact Brushless 1/4 Hex 3-Speed Impact Driver(3651-20)
- (1) M18 REDLITHIUM XC 4.0 Extended Capacity Battery Pack(48-11-1840)
- (1) M18 REDLITHIUM CP2.0 Battery(48-11-1820)
- (1) M18 & M12 Multi-Voltage Charger(48-59-1812)
- M18 FUEL Compact Router (2723-20)
- 1/4 Collet; 4 Round Sub-base Plate;
- 5-3/4 Template Sub-base plate
- 11/16 collet wrench
- 7/16 Spindle wrench
- Dust Shroud
- Fixed Base
- Straight Edge Guide
- Owner's Manual
Warranty
- 5 Years Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
